Temperature Sensor Tag
UHF Temperature Logger RFID Temperature Sensor
UHF Temperature Logger  RFID Temperature Sensor
  • Long Read Range upto 8 meters reading

  • High Accuracy temperature sensoring +/- 0.5 degree

  • Suitable for non-metallic & metallic application

  • More than 16,000 offline reading & data storage

  • Temperature Logging interval is customized & flexible

  • Passive tag Gen2V2 with AES128 secure encrypt

  • I2C & Air protocol both interface

  • Friendly Graphic GUI interface temperature vs date time

Description
  • Gen2v2 RFID tags with integrated TEMP SENSOR

  • CLOUD BASED SOLUTION FOR COLD CHAIN, MEDICINE LOGISTICS AND OTHER RELATED APPLICATIONS.

  • UHF Temperature Logger RFID Temperature Sensor

  • Place of origin : Fujian China ( mainland )

  • Brand name : Xminnov ODM or OEM

  • Internal Battery: Sony DC 3V

  • Life: 16000+ counts/battery

  • Material: PCB/FPC

  • Part No:  Center Frequency at 921MHz transponder (sensitivity):

    NMV2DDH (-15dBm)/8meter+, NMV2DDV (-12dBm)/6meter+, NMV2DF (-7dBm)/4meter+

  • Temperature logging and sensor range from -40°C to +85°C

  • Typical Accuracy  of ± 0.1°C (Specific Calibration)

  • Regular Accuracy of ± 0.5°C (Wafer die based Calibration)

  • Non-volatile EEPROM memory to store up to 16000 temperature measurements with timestamp

  • Battery usage option providing autonomy of up to 21 days in a typical cold application

  • Gen2v2 UHF RFID user-friendly interface to authenticate the product and to retrieve the EEPROM stored data

  • Configurable periodic interval between measurements

  • Configurable Minimum and Maximum thresholds used for temperature comparison before storing in EEPROM

  • Fast access through QR Code to Minimum and Maximum logged temperatures with timestamp without the need to read the entire EEPROM

Value Added/Features
  • Over write logging records time by time after memory is getting full.

  • Hospital medicine management ensure good quality for the patients.

  • Especially for medicine and food cold chain

Application
  • Logistics supply chain,digital warehouse management,valuable products, under realtime and web based could operation system, each items is secure & traceability.

  • Temperature measuring inside of un-man store supermarket, Coldchain Transport container with offline temperature saving & trasmitting

  • Medical drugs, reagents, blood, vaccines, fresh food, seafood products, meat products, dairy products, food, fruits and vegetables, container cold chain transportation, fixed temperature control, etc.

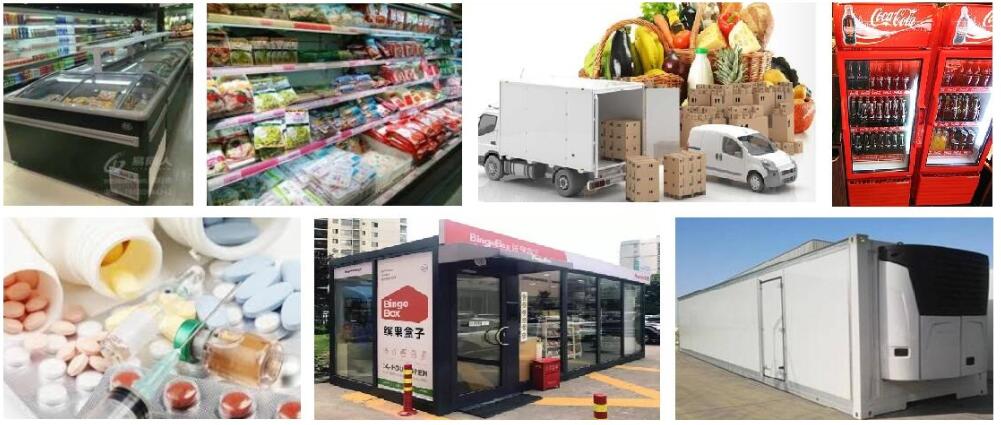

  • In order to resistance dangerous chemical material, temperature sensoring rfid tag as a unique product identification is the first option, especially which is great helpful for the storage of drugs, medicine, foods, body healcare items, sea food, tobacco, drinks and etc.Cold Chain Application

    coldchain temperature tag

  • Important equipment such as high-voltage switchgear, ring network cabinet, high-voltage cable connector, and knife-gate switch of power system may cause problems such as aging of equipment, surface oxidation, corrosion, and loosening of bolts in long-term operation. Coupled with long-term high-load operation of power equipment, it is easy to cause temperature anomalies. If it is not detected in time, it may cause safety accidents such as melting, burning and even explosion.

  • rfid-online-temperature-sensor-uhf-current-temperature-sensor-tag

    rfid-online-temperature-sensor-uhf-current-temperature-sensor-tag

Guarantee
  • Exclusive Design & Patent Technology

  • Factory Quality Service

  • Support OEM, ODM & SKD services,acccept from the processing of Etching, Flip-chip Assembly, Lamination, Die-cut, Program Encoding ( TID/UID, Serial Number, Barcode , Associated All of the related Datas )

  • Free Samples Provided existing in warehouse

  • Good Price & competitively

  • Customized Depending On Requirement

  • Customized Antennna,Inlay,Label Design to Required System

  • Confidential Security Product Structure Design & Evaluation

  • Free Charge Analysis & Simulate Performance Character

  • Free Charge Solution Consulting Including fine Tuning

  • Free Provide Workflow of Tag , Inlay and Antenna production

  • Free Charge User Manual Instruction To Special Requirement

Payment
  • Payment Term: T/T, Western Union & Paypal.

  • Quick customized sample providing of 3-7 days, low cost.

Packaging Shipping
  • Packaging Defined of your needs, Normally supply is in roll by roll with 2000-5000 pcs roll/bag & Paper Carton. Some specified tag can be supplied in piece by piece with 50-200tags per small bag/carton.

  • Shipping Method & Delivery Time: Fastest 8-12 business days by DHL,UPS,FedEx,EMS and so on couriers or sea-cargo air-cargo appointed from the customer.
